Introduced in 2004, the original Graco Fieldlazer S100 striper, currently used by European top soccer clubs, was the first field marker to use proven Graco high-pressure airless paint spray technology. It was created in cooperation with field marking professionals and recognized as one of the top field marking machines. Now, Graco is proud to introduce an extension to the Fieldlazer range: the Fieldlazer S90.
The Fieldlazer S90 combines battery powered simplicity with paint saving, high-pressure airless technology. With its Tilt-N-Pour removable hopper, one button operation and proven RAC 5 spray tips, the S90 is designed for easy start-up, use and cleaning, saving you both time and money.
High Pressure Technology
Operating at over 10 times the pressure of current low pressure models, Fieldlazer gives you up to 50% lower paint consumption and professional bright lines. Low-pressure models simply dump paint onto the ground instead of the grass; wasting not only paint but also water, time and money. All Fieldlazer models use high-pressure technology and precision RAC 5 spray tips to provide a spray pattern that coats both sides of the grass blade, not the soil!
Airless spraying atomizes the paint, produces fine particles, and gives bright, sharp and uniform lines. Only one pass paints the line completely. Airless sprayed paint dries quicker so the field can be used faster after it's been painted.
Ultimate Stability And Flexibility
Fieldlazer is equipped with a three-wheel base design for easy manoeuvrability around corner kicks, arcs, circles, stencils and straight lines. The Fieldlazer S90 is equipped with big turf tyres providing additional stability while making both curves and straight lines. Stencils can be sprayed by removing the gun from the Fieldlazer.
The Fieldlazer S90 can be equipped with the stencil kit to extend your reach while stencilling. The Fieldlazer units handle most striping paints. The S90 model is designed for water based paint only.

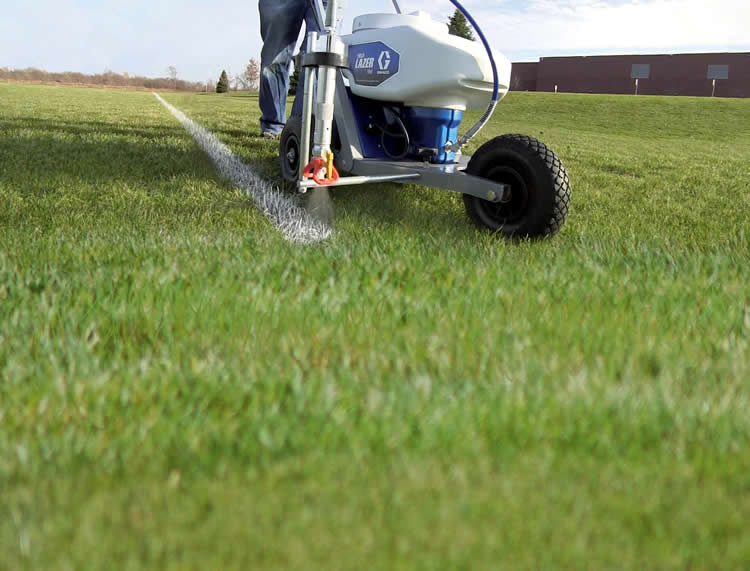

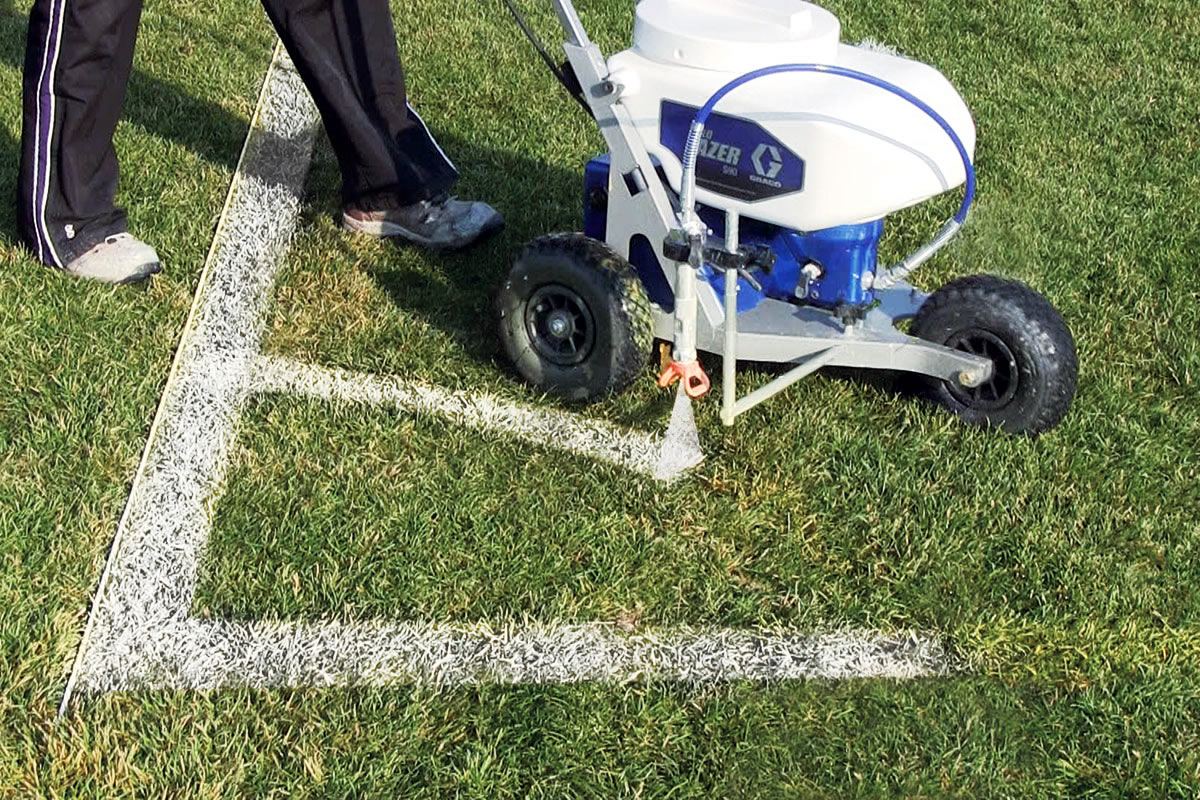

Fieldlazer ™ S90
- One button operation. Add paint and press the button to start. It's that easy!
- 12V rechargeable, maintenance free battery. Up to 10 football fields per charge. Battery charger with bulkhead connection makes it easy to charge after each use. With low battery indication.
- Tilt-N-Pour Removable Hopper (22 liters). Quickly pour and save leftover paint. Remove for additional cleaning ease.
- Easy Out™ filter (100 mesh). Large capacity and no-tools removal for smooth operation.
- Adjustable spray shields. Crisp, straight lines even in windy conditions. Change spray width, gun height. Removable hand gun or spray tip without tools.

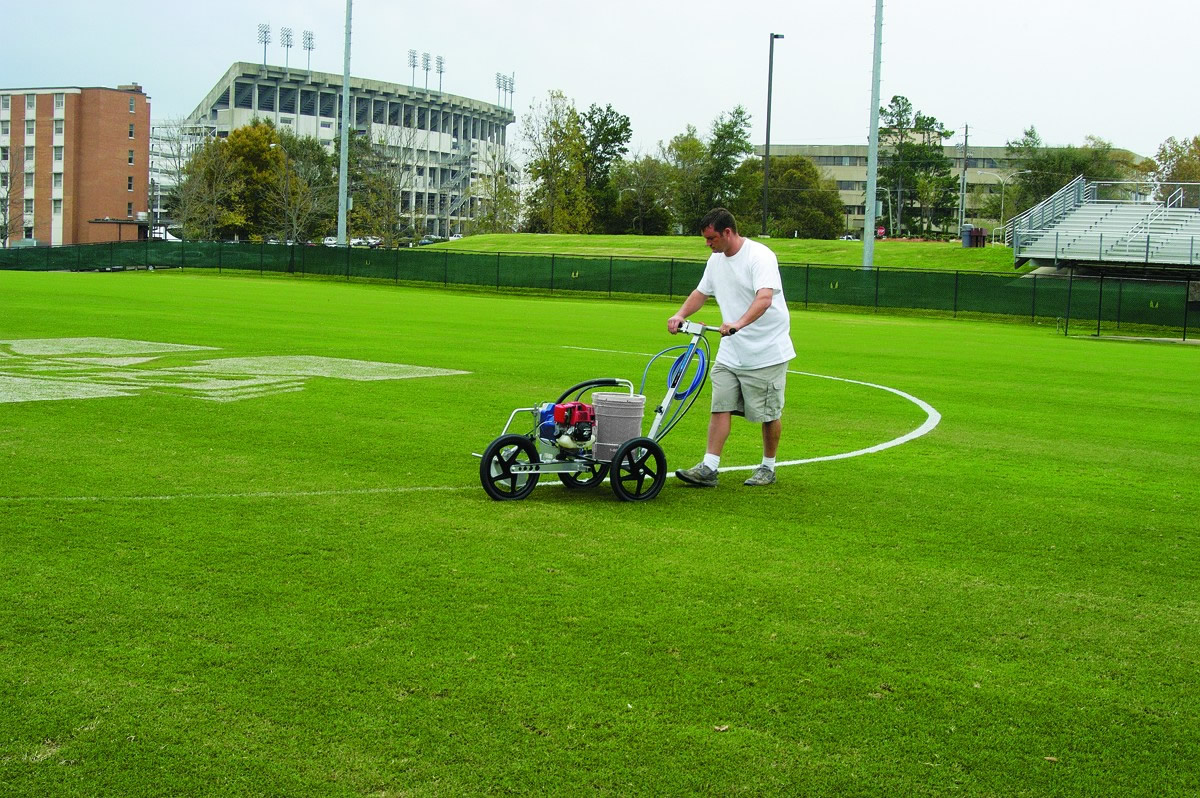

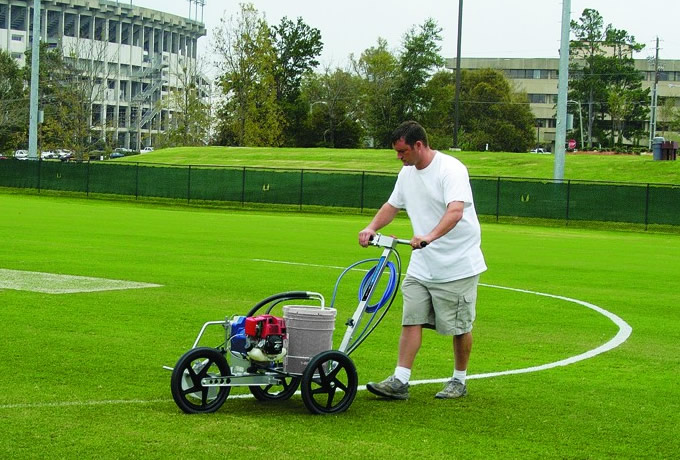

Fieldlazer ™ S100
- Fold-Down Handle for easy transport
- Original container siphoning eliminates the hassle of cleaning tanks and pots.
- High performance piston Pump.
- Job-proven long life design.
- Removable hand gun or spray tip. With 7.5 m of hose. No-tools removal: just detach the gun to spray stencils, logos or large solid areas.
Fieldlazer™ S90 |
Fieldlazer™ S100 |
|
| Part nr., EU | 24R023 | 248777 |
| Part nr., UK | 24R370 | - |
| Max. working pressure, bar (PSI) | 62 (900) | 62 (900) |
| Max. flow, l/min (gpm) | 0.42 (0.11) | 1.9 (0.50) |
| Max. tip size | 0.019" | 0.023" |
| Guard & tip (standard) | RAC5 + LL5315 | RAC5 + LL5421 |
| Weight, kg (lbs) | 27 (60) | 36 (80) |
| Motor type | DC, battery | Gasoline |
| Motor rating | 12V rechargable battery | Honda® GX 4-stroke OHV, 30cm3 |
