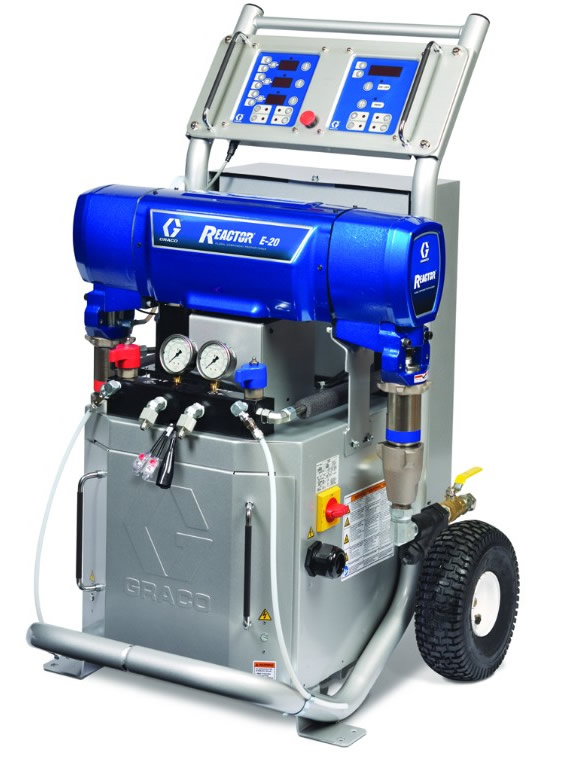

The Graco E-20 Reactor is building to the most advanced technological and mechanical standards available in the spray foam industry.
Simple and clear controls and built-in error detecting diagnostics gives you, the operator, more and better control. Pair the quality and technology of the Graco E-20 with the unmatched dedication to support and troubleshooting from DeltaChem ME and you can’t, you won’t lose.
- Maximum output of 30 lb/min (13.5 kg/min)
- Supports up to 310 ft. of Graco heated hose
- Best suited for use in all residential applications, up to medium commercial, work, and small flat roofing
- The best support and warranty coverage in the industry
Graco E-20/E-XP1 Specifications
| Graco E-20 | Graco E-XP1 | |
|---|---|---|
| Max Output | 20 lbs/min | 1 gpm |
| Max Working Pressure | 2000 psi | 3500 psi |
| Max Hose Length | 210 ft | 210 ft |
| Primary Heater Size | 6.0 kW | 10.2 kW |
| Total System Watts | 10.2 kW | 15.8 kW |
| Electrical (@ 6.0 Kw heaters) | 48 amps @ 1-phase x 230V 32 amps @ 3-phase x 230V |
n/a |
| Electrical (@ 10.2 Kw heaters) | n/a | 69 amps @ 1-phase x 230V 43 amps @ 3-phase x 230V |
| Air Consumption | none | none |
| Weight | 342 lbs | 342 lbs |
