Revolutionize the way you run your business

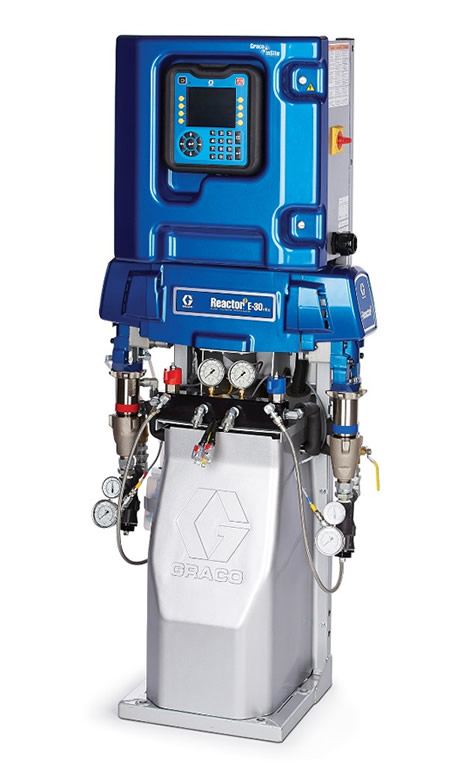

Each feature in the Reactor 2 was strategically designed to help your business, with innovations that help your operation run smoothly. Software and hardware enhancements for better spray performance. And new technologies that add to your bottom line.
Reactor 2 gives you
- Compact footprint – more room in your spray rig
- Ergonomic design – easier to service
- Advanced circuit boards
- Better spraying performance compared to traditional electric Reactor systems
- Troubleshooting made quick and easy with QR codes
Graco InSiteTM gives you
- Better control – manage your spray foam or polyurea business wherever you are
- Better documentation – automatically collect job log data and spray parameters – lets you confirm the job was sprayed to specifications
- Better fleet and crew management
- Better cost containment and forecasting
- Graco InSite comes standard on all Elite models of Reactor 2
Graco Reactor 2 Specifications
| Graco Reactor 2 | Graco E-XP2 | |
|---|---|---|
| Max Output | 30 lbs/min | 2 gpm |
| Max Working Pressure | 2000 psi | 3500 psi |
| Max Hose Length | 310 ft | 310 ft |
| Primary Heater Size | 10.2 kW 15.3 kw |
15.3 kW |
| Total System Watts | 17.9 kW 23 kW |
23 kW kW |
| Electrical (@ 10.2 Kw heaters) | 78 amps @ 1-phase x 230V 50 amps @ 3-phase x 230V |
n/a |
| Electrical (@ 15.3 Kw heaters) | 100 amps @ 1-phase x 230V 62 amps @ 3-phase x 230V |
100 amps @ 1-phase x 230V 62 amps @ 3-phase x 230V |
| Air Consumption | none | none |
| Weight | 400 lbs | 438 lbs |
