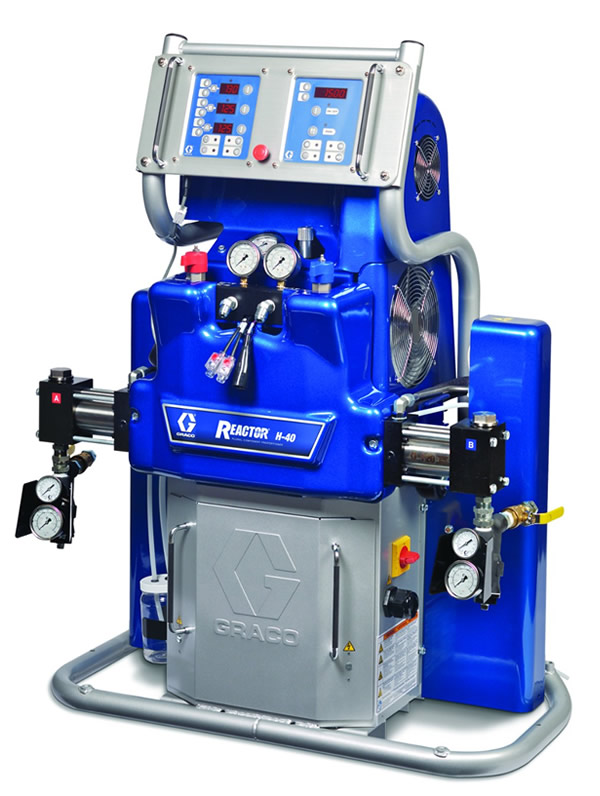

The Graco H-40 Reactor is built to the most advanced technological and mechanical standards available in the spray foam industry.
Simple and clear controls and built-in error detecting diagnostics gives you, the operator, more and better control. Pair the quality and technology of the Graco H-40 with the unmatched dedication to support and troubleshooting from DeltaChem ME and you can’t, you won’t lose.
- Maximum output of 45 lb/min
- Supports up to 410 ft of Graco heated hose
- The H-40 is ideal for any type of spraying, all residential work, all commercial jobs, and any size flat roof
- The best support and warranty coverage in the industry
Graco H-40/H-XP3 Specifications
| Graco H-40 | Graco H-XP3 | |
|---|---|---|
| Max Output | 45 lbs/min | 2.5 gpm |
| Max Working Pressure | 2000 psi | 3500 psi |
| Max Hose Length | 410 ft | 410 ft |
| Primary Heater Size | 20.4 kw | 20.4 kW |
| Total System Watts | 31.7 kW | 31.7 kW kW |
| Electrical (@ 20.4 Kw heaters) | 95 amps @ 3-phase x 230V | 95 amps @ 3-phase x 230V |
| Air Consumption | none | none |
| Weight | 597 lbs | 597 lbs |
