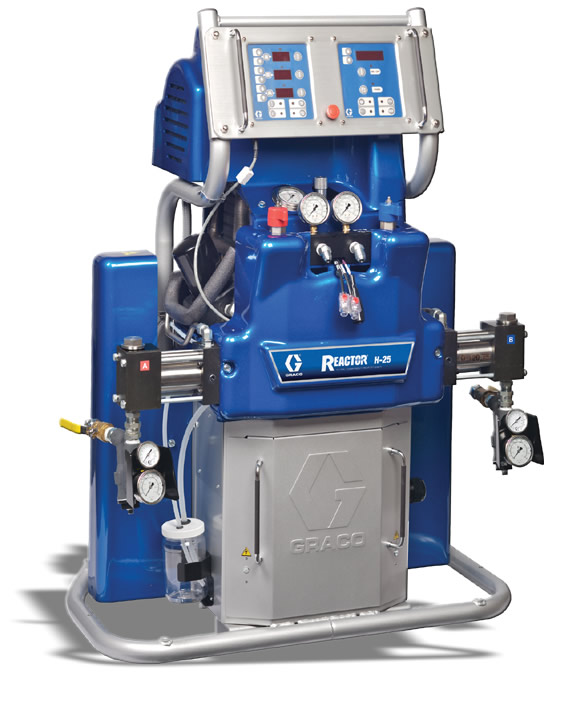

The Graco H-25 Reactor is built to the most advanced technological and mechanical standards available in the spray foam industry.
Simple and clear controls and built-in error detecting diagnostics gives you, the operator, more and better control. Pair the quality and technology of the Graco H-25 with the unmatched dedication to support and troubleshooting from DeltaChem ME and you can’t, you won’t lose.
- Maximum output of 25 lb/min
- Supports up to 310 ft. of Graco heated hose
- The hydraulic driven Graco H-25 is best suited to spray all residential work, up to medium sized commercial jobs, and small flat roofs
- The best support and warranty coverage in the industry
Graco H-25/H-XP2 Specifications
| Graco H-25 | Graco H-XP2 | |
|---|---|---|
| Max Output | 25 lbs/min | 1.5 gpm |
| Max Working Pressure | 2000 psi | 3500 psi |
| Max Hose Length | 310 ft | 310 ft |
| Primary Heater Size | 8 kW 15.3 kw |
15.3 kW |
| Total System Watts | 16 kW 23 kW |
23 kW kW |
| Electrical (@ 10.2 Kw heaters) | 69 amps @ 1-phase x 230V 46 amps @ 3-phase x 230V |
n/a |
| Electrical (@ 15.3 Kw heaters) | 100 amps @ 1-phase x 230V 59 amps @ 3-phase x 230V |
100 amps @ 1-phase x 230V 59 amps @ 3-phase x 230V |
| Air Consumption | none | none |
| Weight | 562 lbs | 562 lbs |
